PEGATEC SERIES HOT PRESSED
<
>

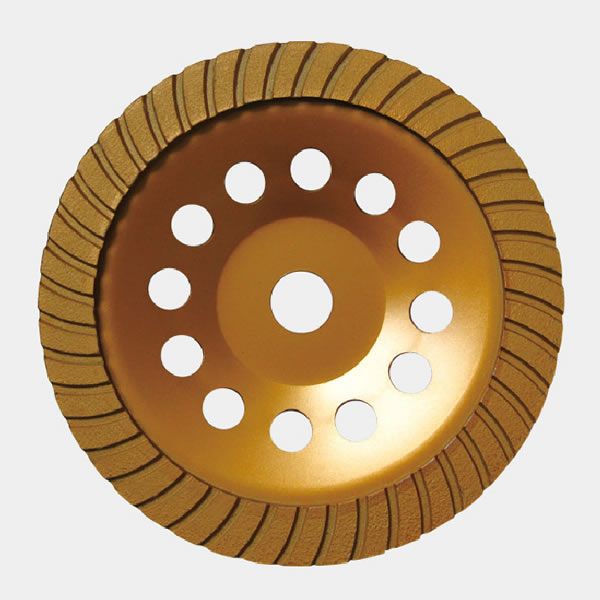

Turbo Diamond Cup Wheels

5.0x7.0x30

  • Code:Turbo Diamond Cup Wheels
better _ nishes and faster results. With an in depth knowledge of the construction and building industry Flexovit provides a range of diamond blades to meet any demand.
  • Share:

Details

Material:
For concrete, granites, marbles, natural stone, lime stone,pumice.
Application:
Grinding of stone mason products, stairs, edges of titles, base for titles and paint.
Characteristics:
The hard binding of the segments guarantees excellent life, less heat generation; faster drill speed, less chipping, very aggressive, segmented design.


Technical Information

The use of diamond blades is rapidly growing as people become increasingly more knowledgeable and experienced, demanding better _ nishes and faster results. With an in depth knowledge of the construction and building industry Flexovit provides a range of diamond blades to meet any demand.
All Flexovit diamond blades conform to the highest European safety standard, EN13236, which ensures that all products are manufactured and tested to the highest quality. All Flexovit products are laser-marked in accordance with the requirements of EN13236.

APPLICATION
Where greater differentiation of products by application is needed, this is done through colour coding.
PERSONAL PROTECTION
Never exceed the Maximum Operating Speeds:
Hand held blades Φ ≤230mm: 80m/s
Hand held blades Φ> 230mm: 100m/s
Others : 63m/s



Dimension Height Segment Bore PK Qty
MM MM NO. MM

100

5.0x7.0x30

24

20/16 1
115 5.0x7.0x30 24 22.23/20 1
125 5.0x7.0x30 28 22.23/20 1
180 5.0x7.0x37 32 22.23/20 1
230 5.0x7.0x37 36 22.23/20 1
