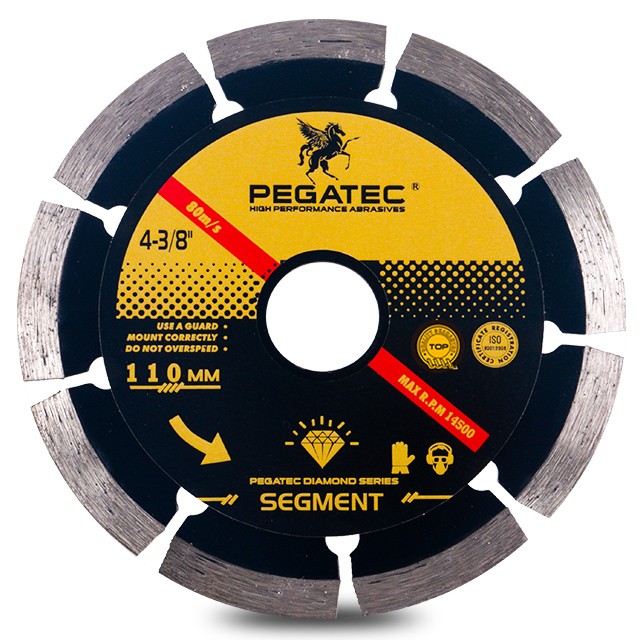

PEGATEC SERIES HOT PRESSED
<
>

Segment Diamond Cutting Wheels

7.0x2.2x20

  • Code:110
Special wheel for roof coverings such as baked roofing titles, concrete roofing tiles, natural or artificial slate, wave shaped eternity, fiberglass-reinforced resin, soft stones, glazed construction materials, glazed construction materials.
  • Share:

Details

Material:
Special wheel for roof coverings such as baked roofing titles, concrete roofing tiles, natural or artificial slate, wave shaped eternity, fiberglass-reinforced resin, soft stones, glazed construction materials, glazed construction materials.
Application:
Cutting of roofing pantiles, steps, stone-window-sills, structural plaster, moulded bricks, tiles, clinker, quarter bricks, lime stones.
Characteristics:
Wheel with profiled continuous rim in sinter binding with short cutting times and long life.
Cooling holes enable easy working. Dry and wet cutting.


Technical Information

The use of diamond blades is rapidly growing as people become increasingly more knowledgeable and experienced, demanding better _ nishes and faster results. With an in depth knowledge of the construction and building industry Flexovit provides a range of diamond blades to meet any demand.
All Flexovit diamond blades conform to the highest European safety standard, EN13236, which ensures that all products are manufactured and tested to the highest quality. All Flexovit products are laser-marked in accordance with the requirements of EN13236.

APPLICATION
Where greater differentiation of products by application is needed, this is done through colour coding.
PERSONAL PROTECTION
Never exceed the Maximum Operating Speeds:
Hand held blades Φ ≤230mm: 80m/s
Hand held blades Φ> 230mm: 100m/s
Others : 63m/s



Dimension Height Thickness Bore PK Qty
MM MM MM MM

105

7.0/10.0

2.2

20/16 1
115 7.0/10.0 2.2 22.23/20 1
125 7.0/10.0 2.2 22.23/20 1
180 7.0/10.0 2.4 22.23/20 1
230 7.0/10.0 2.6 22.23/20 1
