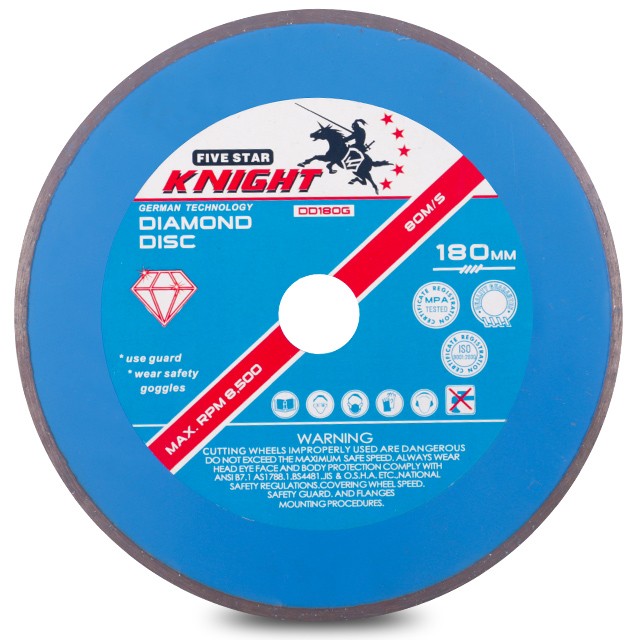

KNIGHT SERIES
<
>

Continuous Diamond Cutting Wheels

7.0x20

  • Code:180
The use of diamond blades is rapidly growing as people become increasingly more knowledgeable and experienced, demanding better _ nishes and faster results. With an in depth knowledge of the construction and building industry Flexovit provides a range of diamond blades to meet any demand.
  • Share:

Details

Material:
Special wheels for all types of titles, ceramics, porcelain, clinker, quarter bricks and natural stones.
Application:
Cutting of clinker, moulded bricks, step, stone-window-sills, roof-coverings, floor slabs.
Characteristics:
Wheel with continuous rim. The high amount of fine-grained diamonds avoids breaks on the cutting edges of the titles. Dry and wet cutting.


Technical Information

The use of diamond blades is rapidly growing as people become increasingly more knowledgeable and experienced, demanding better _ nishes and faster results. With an in depth knowledge of the construction and building industry Flexovit provides a range of diamond blades to meet any demand.
All Flexovit diamond blades conform to the highest European safety standard, EN13236, which ensures that all products are manufactured and tested to the highest quality. All Flexovit products are laser-marked in accordance with the requirements of EN13236.

APPLICATION
Where greater differentiation of products by application is needed, this is done through colour coding.
PERSONAL PROTECTION
Never exceed the Maximum Operating Speeds:
Hand held blades Φ ≤230mm: 80m/s
Hand held blades Φ> 230mm: 100m/s
Others : 63m/s



Dimension Height Thickness Bore PK Qty
MM MM MM MM

105

7.0

2.2

20/16 1
115 7.0 2.2 22.23/20 1
125 7.0 2.2 22.23/20 1
180 7.0 2.4 22.23/20 1
230 7.0 2.6 22.23/20 1
